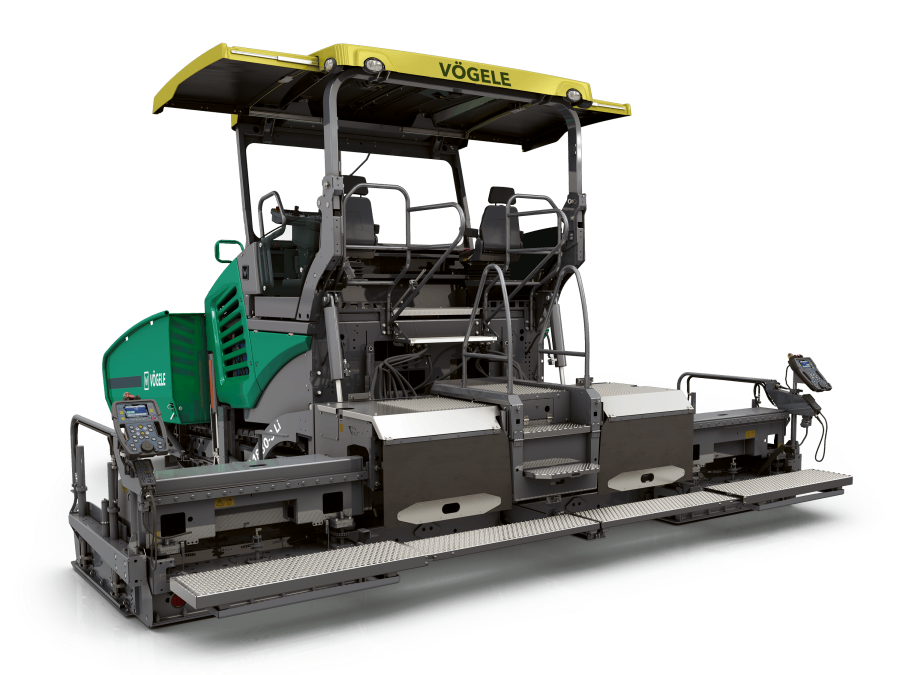

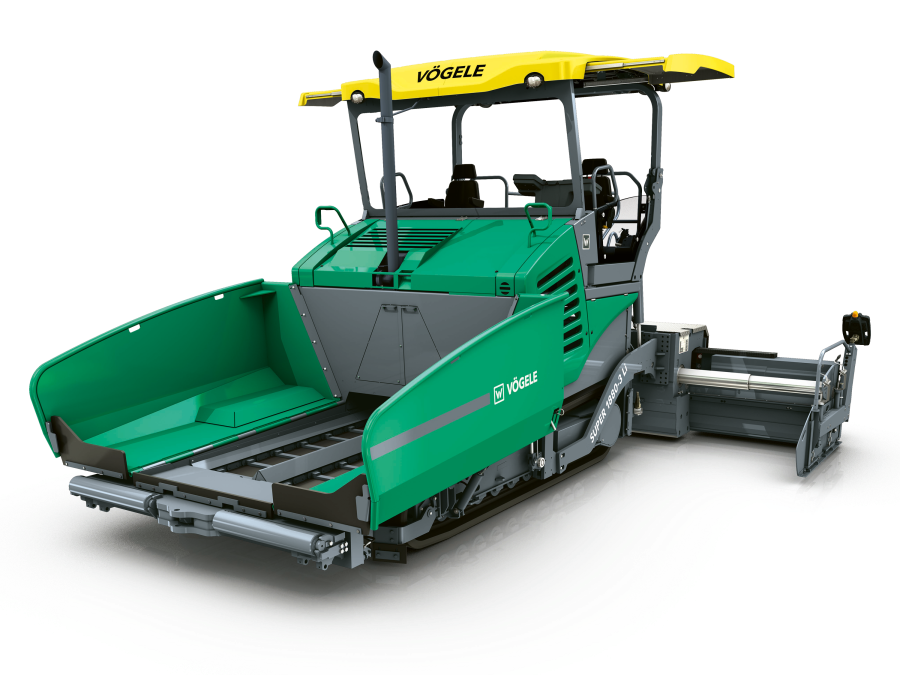

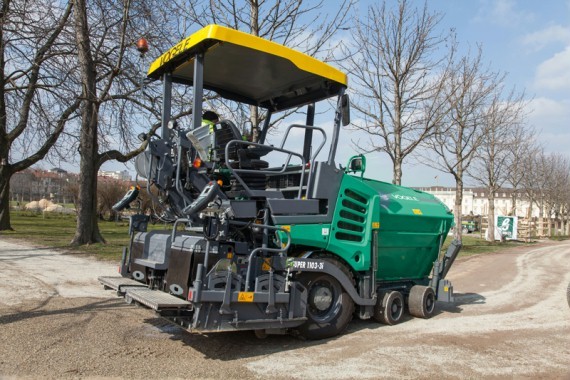

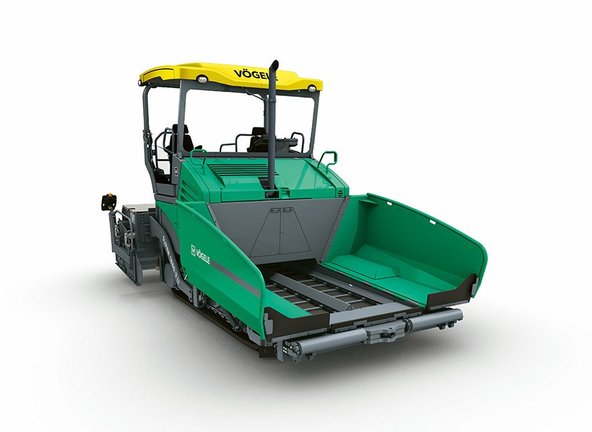

Model: VÖGELE SUPER 1880-3L
Used Crawler Paver VÖGELE SUPER 1880-3L
- Maximum paving width: 9.5m
- Max. paving capacity: 1000 t/h
- Max. paving thickness: 50cm
VÖGELE SUPER1880-3L asphalt paver has the advantages of sturdy and stable structure, easy operation, high efficiency, strong adaptability and convenient maintenance, which can improve the construction efficiency and construction quality, and is widely recognized and used in the market.
Free Quote
Share:
Share:
VÖGELE SUPER1880-3L Performance Features:
- sturdy and stable structure: the asphalt paver adopts a sturdy structural design with reasonable weight distribution, which can ensure the stability and safety of the equipment in the process of use and effectively prevent the equipment from shaking or tipping.
- Easy operation: VÖGELE SUPER1880-3L asphalt paver adopts simple and easy-to-understand operation panel, equipped with humanized control system, which enables the operator to grasp the operation skills easily and get started quickly.
- High efficiency: The paver is equipped with efficient heating equipment and mixing system, which can quickly heat the asphalt to the required temperature and mix it evenly to ensure excellent asphalt quality. Meanwhile, the paving width of this equipment is large and the construction speed is fast, which can improve the working efficiency and construction quality.
- Strong adaptability: VÖGELE SUPER1880-3L asphalt paver is able to adapt to different types and thicknesses of asphalt materials, with a large paving range and adjustment range, suitable for different types of roads and construction needs.
- Convenient maintenance: the machine adopts a modularized design, with each component independent of the other, making it easy to maintain and replace. In addition, the equipment is equipped with an intelligent fault diagnosis system, which can accurately determine equipment faults and quickly carry out repairs, reducing downtime.
VÖGELE 1880-3 L SUPERSPACER Parameters and Configurations:
| Model: | Super 1880-3 L |
| Engine: | Dongfeng Cummins 6-cylinder liquid-cooled diesel engine QSB6.7-C215 |
| Emission standard | China Stage III |
| Power: | (DIN) 158 kW / 2,000 rpm |
| Maximum paving width: | 10 m |
| Maximum paving capacity: | 1,000 t/h |
| Maximum paving thickness. | 50 cm |
| Fuel tank volume: | 350 L |
| Crawler: | With rubber track plates |
| Travel drive | Independent hydraulic drive with electronic control of both tracks |
| Speed: | – Paving: infinitely variable speed, max. 24 m/min |
| Hopper capacity: | – Travel: infinitely variable speed, max. 4.5 km/h |
| Hopper width: | 15 t |
| Splicing height: | 3,261 mm |
| Push roller: | 550 mm (hopper bottom) |
| Feeder: | Oscillating and able to move forward 75 cm and 150 mm |
| Weight: | 2, reversible for short periods of time, replaceable scrapers |
